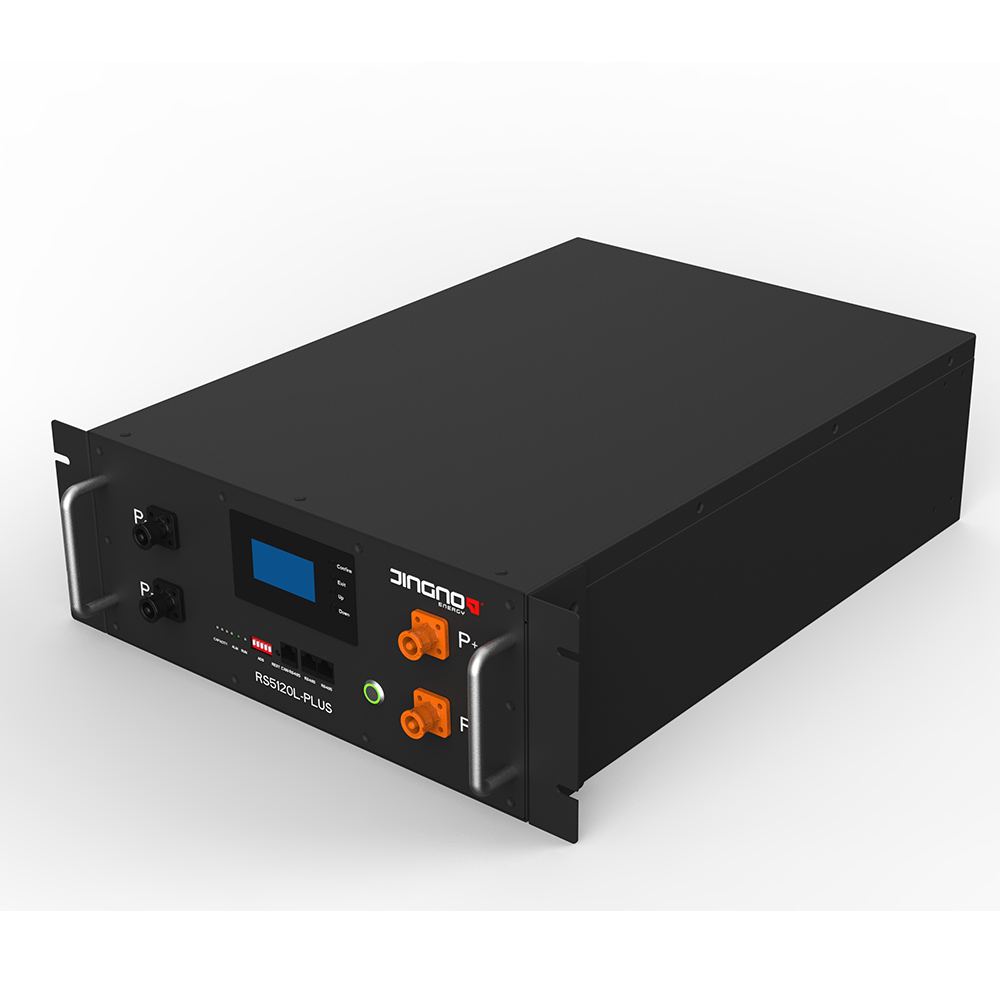

51.2v 5kwh 10kwh Server Rack Lifepo4 Solar Home Storage Battery Backup LFP Module

Jingnoo Lithium battery 51.2V (48V) 5.12kWh with 100AH internal BMS. Composed of (16) UL listed prismatic 3.2V cells in series which have been tested at 7,000 deep discharge cycles to 80% DoD - fully charge and discharge this battery daily for over 15 years without issue. Reliable and rigorously tested, with a 99% operating efficiency.


Packing list

Item

Quantity

RS5120L-PLUS Battery Pack 5.12KWh

1 PCS

Parallel cable with plus orange and black 240mm

1 SET
RJ45 cable, yellow 300mm 1 PCS
Ground cable, M6 screw hole 190mm 1 PCS

Optional accessories list

Adapter RS485 to USB adapter
Cable Pack to inverter power cable 1500cm, positive and negative other length cables optional
RJ45 cable 1500cm

Specifications

Nominal Voltage (V) 51.2V
Nominal Capacity (Ah) 100Ah @0.5C discharge current
25±2℃
Rated Capacity (Ah) 98-105Ah @0.5C discharge current
25±2℃ 41.6V - 57.6V
Nominal Power (Wh) 5.12KWh
Dimension (mm) 600*420*180mm
Weight (Kg) 56.2±5KG
Discharge Cut-off Voltage (V) 41.6V
Charge Voltage (V) 57.6V
Continuously Charge/Discharge Current (A) 100A @25±2℃
Standard charge/discharge Current (A) 50A @25±2℃
Communication Interface CAN, RS485
Configuration 2*1P8S
Working Temperature 0~50℃(Charge)
-10~50℃(Discharge)
-20~55℃(Storage)
Cell chemistry Lithium iron phosphate (LiFePO4)
Cycle life ≥80% capacity state after 4800
cycles at 0.5C, 25℃, 100% DOD
IP level IP 20
Max parallel 16P
Humidity 10% - 85%
Certification CE, ROHS, MSDS, UN38.3
