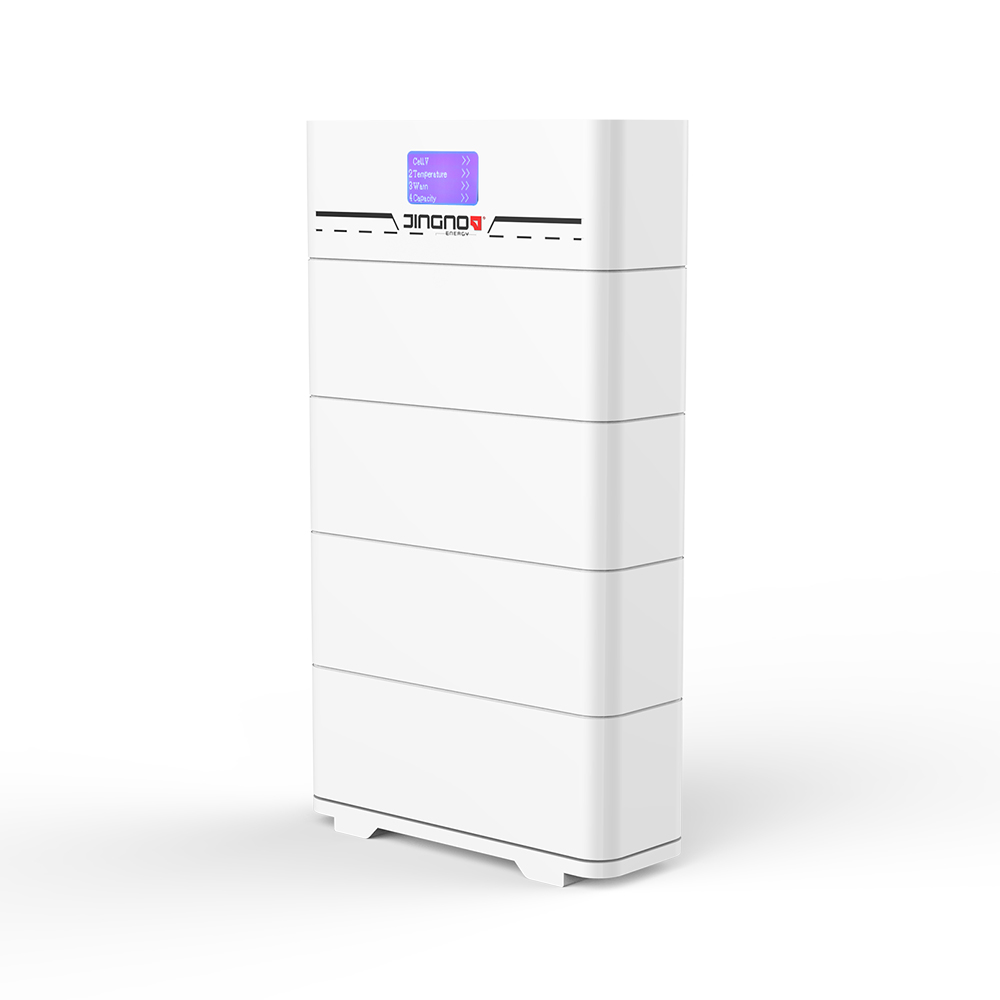

51.2V 10.65kWh High Voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:

51.2V 10.65kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery

This Home storage energy solar battery, developed with their own lithium iron phosphate cell to ensure the highest safety value and most promising life cycle.A self designed BMS protects the cell from abnormal temperature, current, voltage, SoC and SoH.  The JN-HSM   is a 51.2V battery,This home battery is modular with 2.816kWh increments, providing a capacity range of 8..448-22.528 kWh,providing a voltage range of 153V-409V.it can be used to support reliable power for various types of equipment and systems.

Features and benefits

1.Vertical industry integration ensures cycle life of 6000 cycles

2.Compatible with both new installations and retrofits (AC- or DC-coupled)

3.Modular design gives the end customers the power of choice of capacity

4.Compatible with large number of Hybrid inverters

5.Simple buckle fixing minimize the installation time and cost

6.Provides pre-charge function to protect ESS system from

  surge current.Up to 15 units can be stacked in parallel

7.Compact and fashionable design fits in your home environmentx

8.Comes with a 5-year warranty extendable


HVM7.99 HVM10.65 HVM13.31 HVM15.98 HVM18.64 HVM21.30
Battery Module                                                              HVM (2.662 KWh, 51.2 V)
Number of Modules 3 4 5 6 7 8
Usable Energy 7.986KWh 10.648KWh 13.31KWh 15.972KWh 18.634KWh 21.296KWh
Max Output Current 50 A 50 A 50 A 50 A 50A 50 A
Nominal Voltage 153 V 204 V 256 V 307 V 358 V 409 V
Operating Voltage 120~180 V 160-240 V 200~300 V 240~360 V 280~420 V 320~480 V
Dimensions (H/W/D) 905*600*245 mm 1115*600*245 mm 1325*600*245 mm 1535*600*245 mm 1745*600*245 mm 1955*600*245 mm
Weight(KG) 129 kg 167 kg 205 kg 243 kg 281 kg 319 kg
