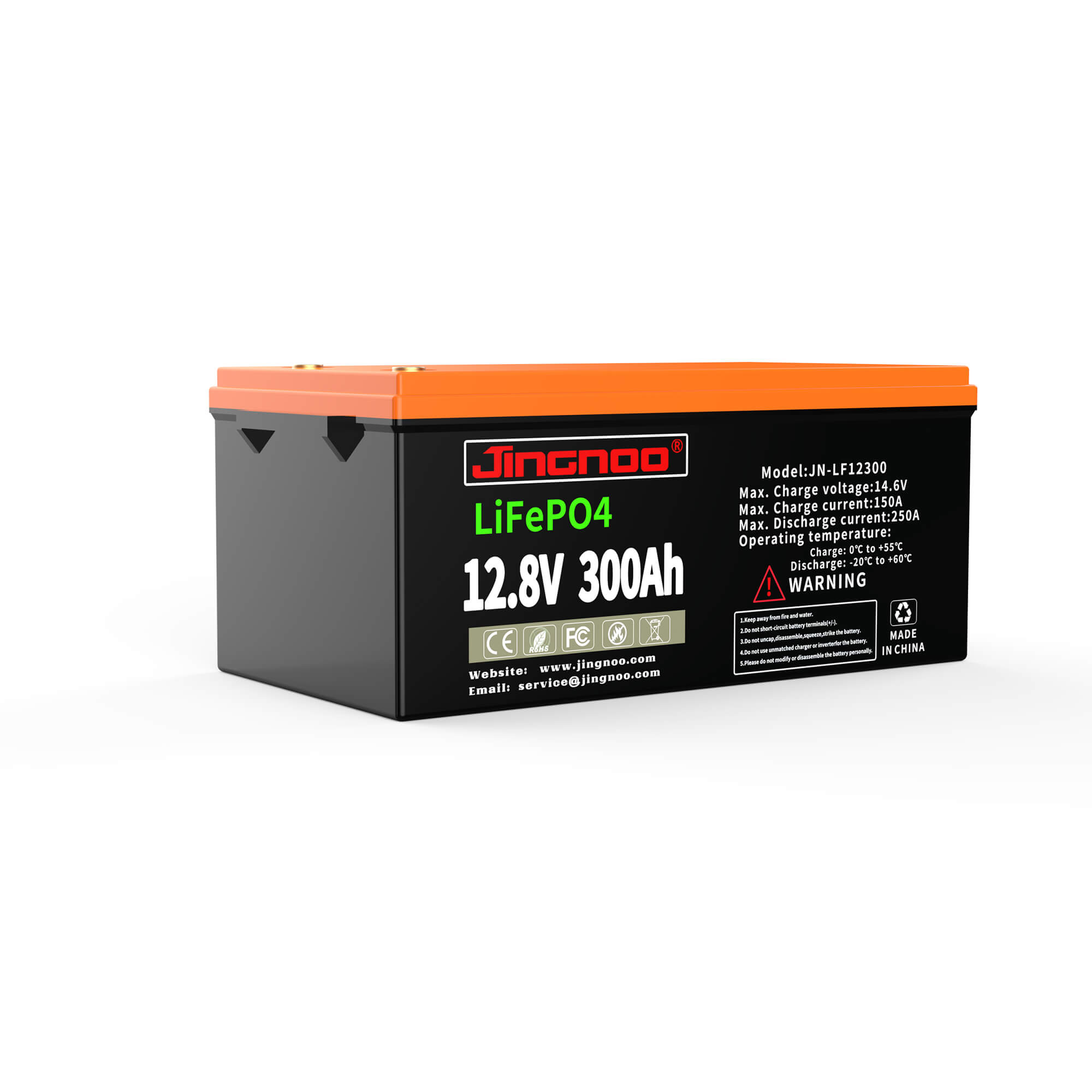

12V 300A LiFePO4 BMS Battery Packs Deep Cycle LFP Lithium Solar RV Marine Storage li-ion Battery

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:
ModelJN-LF1250JN-LF12100JN-LF12200JN-LF12300JN-LF12400JN-LF24100JN-LF24200JN-LF4850JN-LF48100
Enclosure protection ratingIP64IP64IP64IP64IP64IP64IP64IP64IP64
Nominal Energy600Wh1200W2400Wh3600Wh4800Wh2400Wh4800Wh2400Wh4800Wh
Rated capacity50AH100Ah200Ah300Ah400Ah100Ah200Ah50Ah100Ah
Nominal voltage12.8V12.8V12.8V12.8V12.8V25.6V25.6V51.2V51.2V
Operating voltage10V~12.8V10V~12.8V10V~12.8V10V~12.8V10V~12.8V20V~25.6V20V~25.6V40V~51.2V40V~51.2V
ChemistryLiFePO4 (Lithium Iron Phosphate)
Cycle Life≥4000 cycles @ 0.2C 80% DOD
Cell weight11.57lb / 5.25kg24.25 lb / 11kg48.28 lb / 21.9kg62.83lb / 28.5kg86.2lb / 39.12kg48.28 lb / 21.9kg85.54lb / 38.94kg56.87lb /25.8kg95.9lb / 43.5kg
Dimension(T*W*H)mm198*166*170330*172*220522*240*218520*269*220520*269*220522*240*218520*269*220333*176*217522*240*218
Max. continuous charge current25A50A100A150A200A50A100A25A50A
Max. continuous discharge current50A100A200A250A250A100A200A50A100A
Maximum Permanent Discharging Current:100A(3S)200A(3S)400A(3S)600A(3S)750A(3S)200A(3S)400A(3S)100A(3S)200A(3S)
Charge Voltage14.6V14.6V14.6V14.6V14.6V29.2V29.2V58.4V58.4V
Discharge Cut-ioff Voltage10V10V10V10V10V20V20V40V40V
Max. Continuous Load Power640W1280W1280W2560W3200W2560W5120Wh2600Wh5120Wh
Recommend Solar Panel Configuration (Fully charges with effective sunshine 4.5h/day)≥150W≥300W≥600W≥900W≥1500W≥600W≥1500W
≥1200W
Recommend Inverter Power


≤3000W≤4000W≤3000W≤6000W
≤6000W
Charge MethodCC/CVCC/CVCC/CVCC/CVCC/CVCC/CVCC/CVCC/CVCC/CV
Operating Temperature Charge:0℃ to 50℃
Operating Temperature Discharge:Discharge: -20℃ to 60℃
Number Of Cells448128881616
Wire(s) for Series & Parallel Connection / Loading10 AWG6 AWG6 AWG2* 6 AWG2* 6 AWG6 AWG


Certification:CE//UL/UN38.3CE//UL/UN38.3CE//UL/UN38.3CE//UL/UN38.3CE//UL/UN38.3CE//UL/UN38.3CE//UL/UN38.3CE//UL/UN38.3CE//UL/UN38.3
